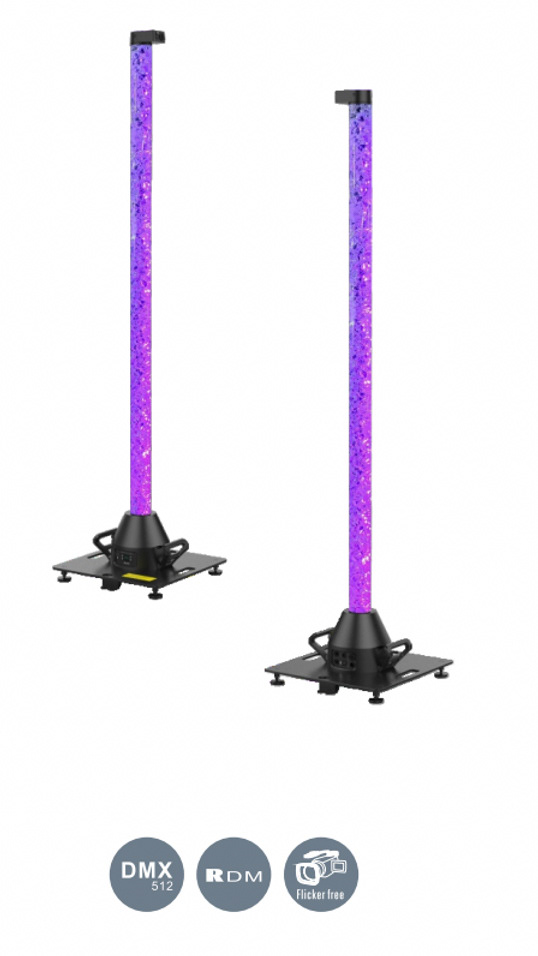

RLS 100
FEATURES
• RGB color changing lighting effects, pixel map lighting effects
• Various on-board effects, speed control and smooth color mixing effects
• Multi-point surface light, multi-point back light with pixel control
• Smooth dimming from 0-100%
• Various strobe speeds

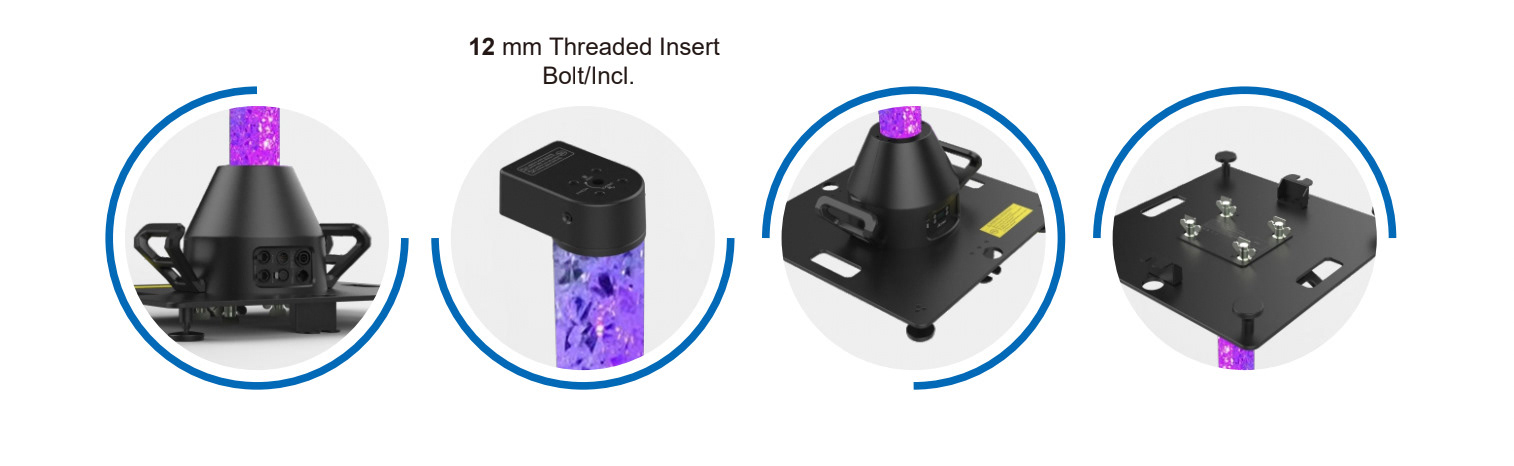

• Supports up to a 33 pound (15kg) fixture mounted on top
• RGB color changing lighting effects, pixel map lighting effects
• Various on-board effects, speed control and smooth color mixing effects
• Multi-point surface light, multi-point back light with pixel control
• Smooth dimming from 0-100%
• Various strobe speeds
• Supports up to a 33 pound (15kg) fixture mounted on top
TECHNICAL SPECIFICATIONS
Specifications
• Light Source: 162x0.2W RGB LED
• CTO: 8000K
• Light Source: 162x0.2W RGB LED
• CTO: 8000K
Control
• Control Channels: 10/489
• Protocols: DMX512, Art Net, sACN, RDM, RJ45
• Firmware Upgrade:Upgrade via DMX link or USB disk
• Control Channels: 10/489
• Protocols: DMX512, Art Net, sACN, RDM, RJ45
• Firmware Upgrade:Upgrade via DMX link or USB disk
![](https://cdn.myportfolio.com/0f73f29b-b4fc-49d8-8267-713b7a8e6d47/7a780a8a-e879-444d-bfc9-5ffe9c40a00f_rw_600.jpg?h=f16fa95b0df92b62d929511d2a8c2131)
Construction
• Display: OLED display
• Data In/Out: 5-pin XLR, RJ45

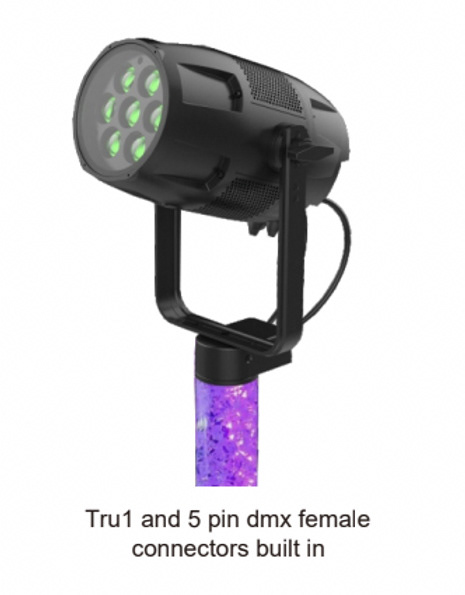

• Power In/Out: Tru1 Power Connector in/out
• Protection Rating: IP20
• Display: OLED display
• Data In/Out: 5-pin XLR, RJ45
• Power In/Out: Tru1 Power Connector in/out
• Protection Rating: IP20
Electrical and Physical
• Input Voltage Range: 100-240V~ 50/60Hz
• Power Consumption: 28W
• Fixture: 358x236x2055mm (14.1"x9.3"x80.9")
• Weight: 18 kg (40 lbs)
• Ground Base: 500x500x55mm (19.6"x19.6"x2.2")
• Weight: 16 kg (35 lbs)
• Flight Case Dimensions: 2129x590x908.5 mm (83.8"x23.2"x35.8" )
• Weight : 70kg ( 154 lbs)
• Input Voltage Range: 100-240V~ 50/60Hz
• Power Consumption: 28W
• Fixture: 358x236x2055mm (14.1"x9.3"x80.9")
• Weight: 18 kg (40 lbs)
• Ground Base: 500x500x55mm (19.6"x19.6"x2.2")
• Weight: 16 kg (35 lbs)
• Flight Case Dimensions: 2129x590x908.5 mm (83.8"x23.2"x35.8" )
• Weight : 70kg ( 154 lbs)
![](https://cdn.myportfolio.com/0f73f29b-b4fc-49d8-8267-713b7a8e6d47/f6f5528d-91ce-4fa8-937d-dd32112ba582_rw_600.jpg?h=51b668187abd2dd5d5fbe9f9ead1a240)
![](https://cdn.myportfolio.com/0f73f29b-b4fc-49d8-8267-713b7a8e6d47/c746350e-cb37-4f23-b45a-f9e82cc580b7_rw_1920.jpg?h=66bec2d446dad7956d40578f02f2538c)
DIMENSIONS inches (mm)
